Descripción
Key Specification
Puertos

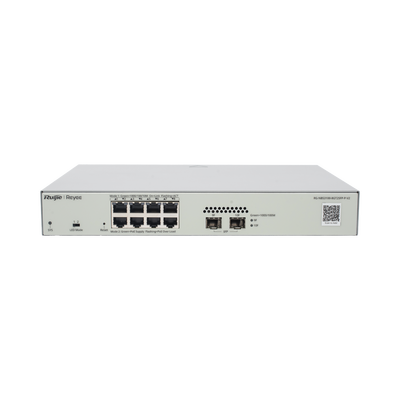

8 puertos PoE+ 10/100/1000 Base-T, 2 puertos SFP con enlace ascendente
PoE (802.3af)/PoE+ (802.3at)
125 W
Capacidad de conmutación
20 Gbps
Velocidad de reenvío
14.88 Mpps
Tabla de direcciones MAC
8000
Máximo número de VLANs
4094
Ventilador
Sin ventilador
Protección contra sobrecarga en el puerto
6 kV
Dimensiones (ANCHO × LARGO × ALTO)
300 mm x 205 mm x 44 mm
Peso (con empaque)
1.8 kg
Tiempo medio entre fallos (MTBF)
> 200,000
Garantía
5 años
Key Specifications
Product Information
Product Category
Product Category
- Layer 2
Hardware Specifications
Product Information
Warranty
- 5 years
Port Specifications
Total number of RJ45 ports
- 8
Total number of optical ports
- 2
Number of 1GE combo ports
- No
Number of 1GE SFP ports
- 2
Number of 10GE SFP+ ports
- No
Number of 10/100BASE-T ports
- No
Number of 10/100/1000BASE-T ports
- 8
Number of 10/100/1000/2500BASE-T ports
- No
Number of 100/1000/2.5G/5G/10GBASE-T ports
- No
Power Supply and Consumption
Number of PoE Out ports
- 8
Number of PoE/PoE+ Out ports
- 8
Number of PoE/PoE+/PoE++ Out ports
- No
PoE budget
- 125 W
PoE power pins
- 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
- 14.88 Mpps
Switching capacity
- 20 Gbps(bit/s)
Environment and Reliability
MTBF
- 400,000 hours
Operating temperature
- 0°C to +50°C (32°F to 122°F)
Altitude
- Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Surge protection
- Service port: ±6 kV for common mode
Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
- Yes
Interface
Jumbo frame length (MTU)
- 9216 bytes (global configuration mode)
Security
Port isolation
- Yes
Broadcast storm control
- Yes
